TestWorks' Coverage Bundle has powerful instrumenter/analyzer engines that generate calletree and digraph information about the software you're analyzing.

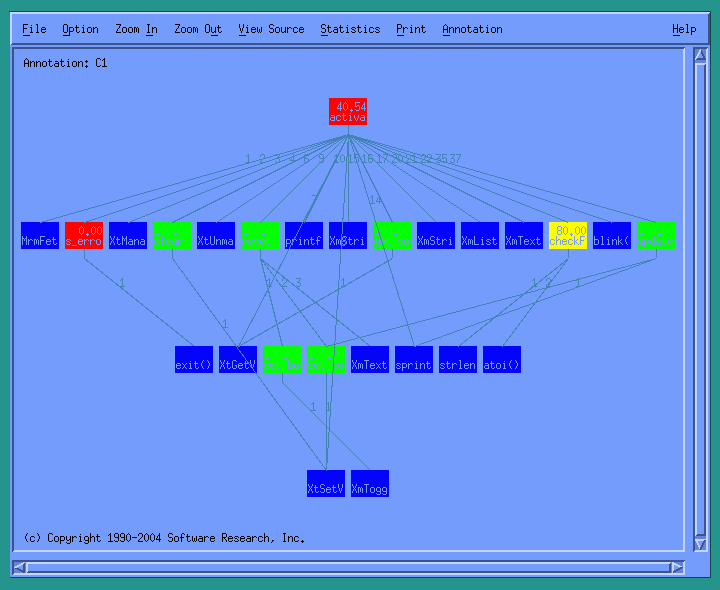

The calltree below has been annotated to show the level of call pair coverage (S1) for the application under test. Red, Yellow and Green functions in the tree indicate low, average, or high coverage for each node. The user can set these threshold levels.
